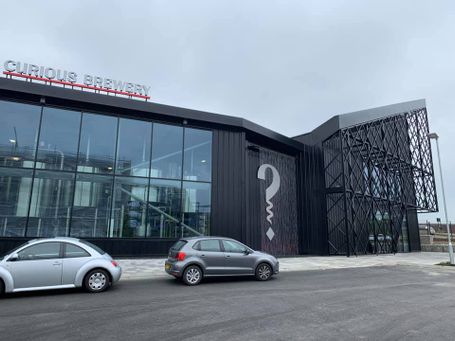

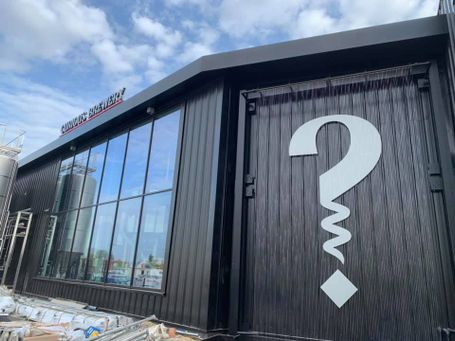

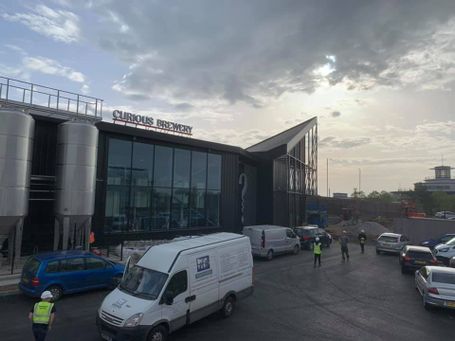

Project was completed using Tata trisomet HPS200 in black with a HPS200 grey internal finish due to the adverse internal conditions, this building has a stunning feature using aluminium polyester powder coated flashing's to the perimeter of the building at high level. This building has an open restaurant and tasting area for the general public and has a great view over the procurement area.
Roof and wall cladding

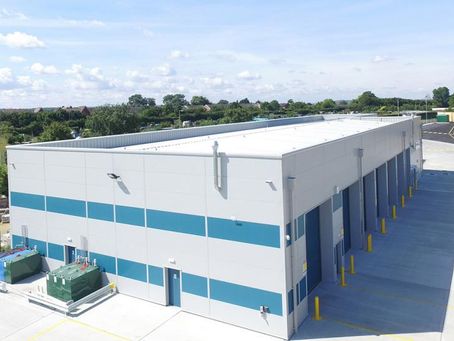

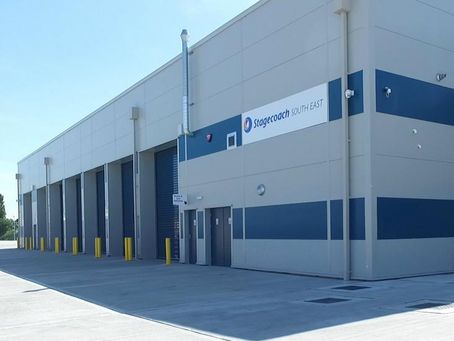

stage coach required a maintenance depot for thier busses and this Project was completed using Tata Trisomet 120mm composite panel achieving a 0.16 U Value. Wall: 300m2 Tata Trima 90mm composite panel acheiving a 0.23 U Value. Ral colour 5020 Ocean blue (feature strips) leathergrain finish Wall: 950m2 Tata Trima 90mm composite panel acheiving a 0.23 U Value. Ral colour 7038 Goosewing grey, leathergrain finish
Total curved roof: 2800m2

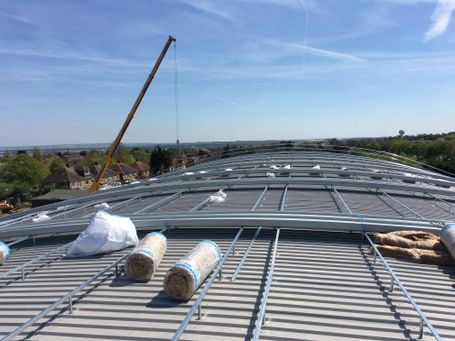

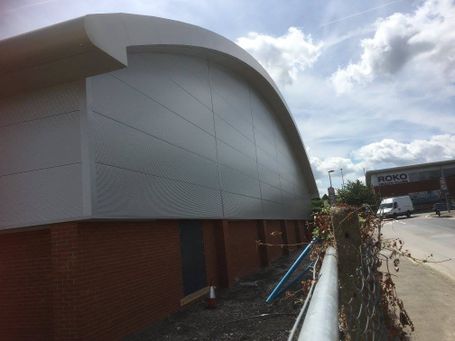

the avenue tennis centre is a stunning building with a high internal roof area and Project was completed using Euroclad elite plus 5 curved built up system achieving a 0.16 U Value with a white internal liner sheet.
Link roof: 420m2 Tata 120mm trisomet composite panel achieving a 0.16 U Value.
Wall cladding: 1100m2 Tata 90mm trisomet panel achieving a 0.24 U Value.
Due to the length of the curved roof sheets on the main roof we partnered with euroclad to have the aluminium coil delivered to site and then rolled the roofing sheets in one 45m length straight onto the roof to ensure that the roof had no end laps and was free from visible fasteners.
The low level restaurant sheets were cut and pre curved before arrival to site and lifted into position. This project has also won awards for the architecture and the visual impact it has on the surrounding area.

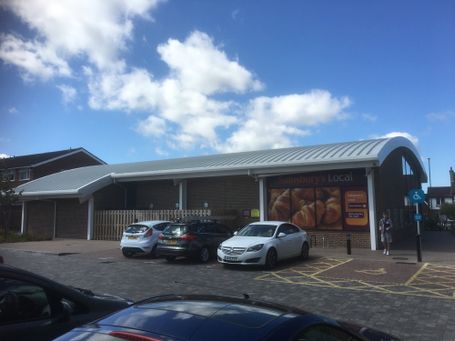

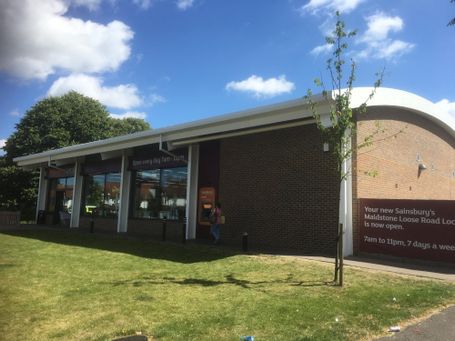

Project was completed using Euroclad elite plus 4 built up curved roof system, painted ARS aluminium roofing sheet which in turn is zipped into the halter system and allows the roof to have no visible fasteners, With an internal bright white steel liner. Including 2mm aluminium rainwater goods/fascias and meter wide soffits

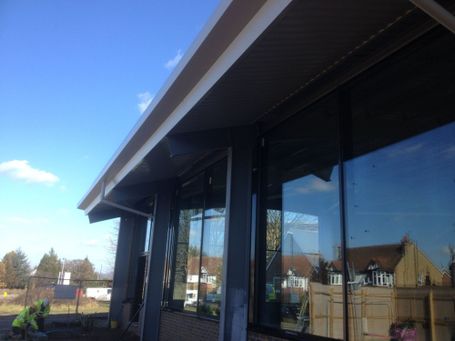

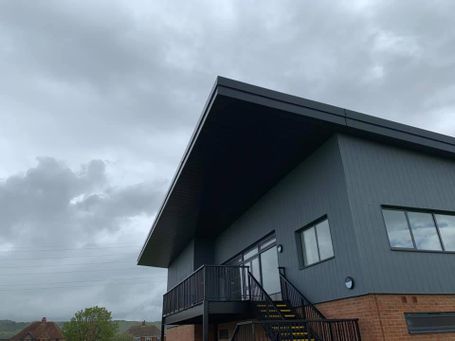

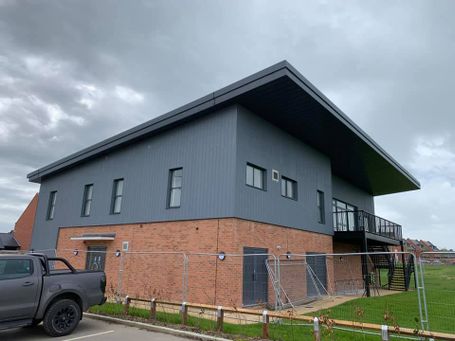

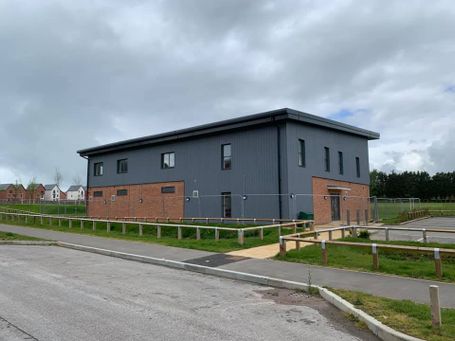

the new housing community in folkestone required a pavilion for the local residents. This Project was completed using Kingspan KS/1000RW insulated roofing panels in Anthracite HPS200 finish/ with aluminium fascia , gutter and rainwater pipes and module soffit in Anthracite.

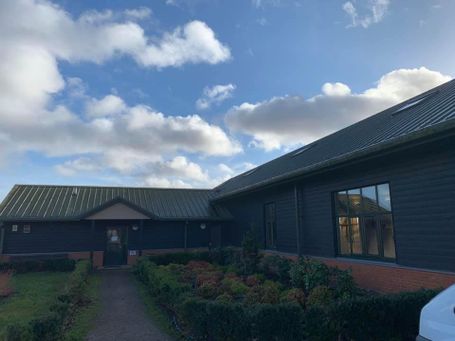

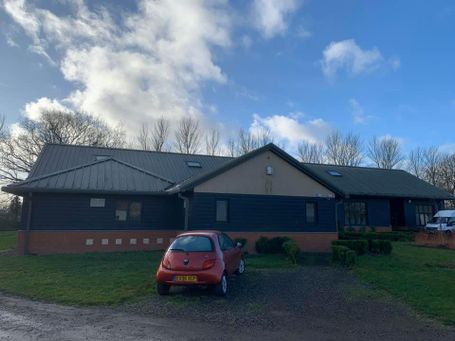

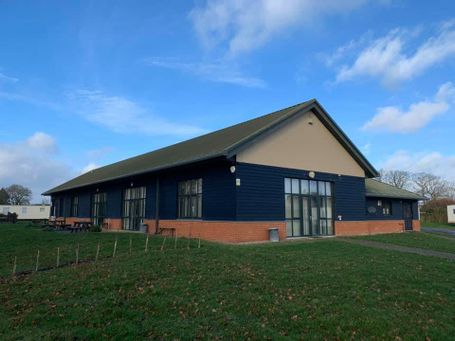

Project was completed using Tata composite and single skin to the roof pitches with grp to the valleys in olive green

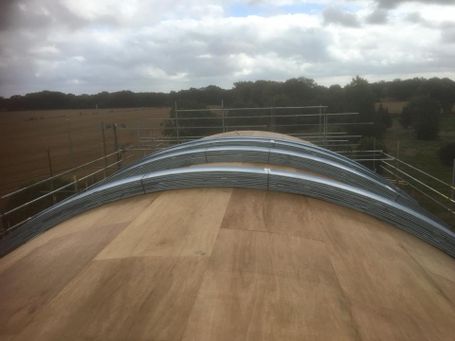

Project was completed using 250m2 of Euroclad’s Vieo Zinc standing seam fixed onto a ply substrate, including vertical wall cladding. 80m2 of flat roof single ply membrane. 2mm Ali ppc flashing and soffit sheets.

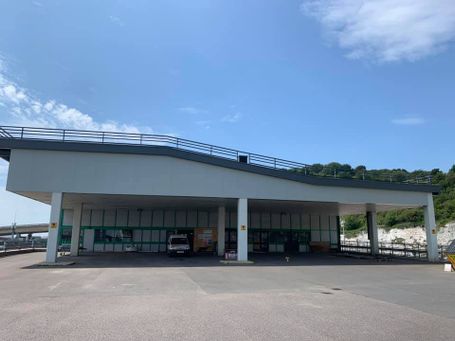

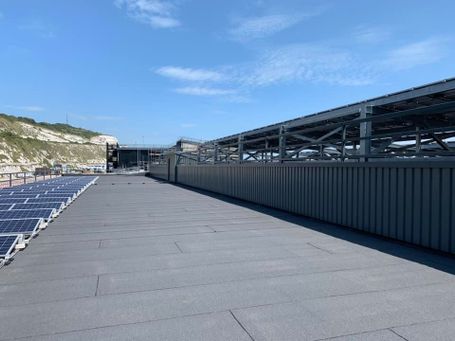

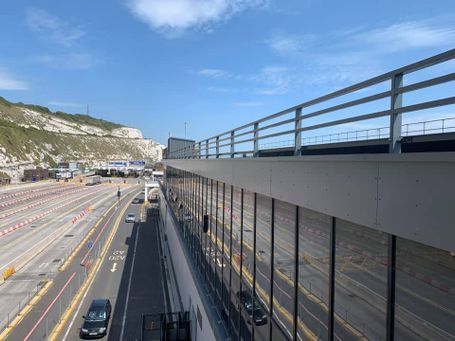

The passenger terminal in Dover was looking old and tied and required a make over. The clients architect wanted a flat panel look and we provided a 3mm aluminium flat plate using over two thousand meters of aluminium fascia and capping to tidy up the building.
